How to build a multi-purpose shelf
A shelf is one of the most common furnitures which is often found among household goods. I will share an idea how we can build it out of plywood. I will be using 18mm thick plywood for this project. First thing is to cut the leg pieces. Two legs will be sufficient for our project. Length and breath of the leg are 8 inches each. It is cut in below shape. You can cut in any other shape as well but be careful not to weaken the plywood piece.
 |
| diy multi purpose shelf - leg |
Two pieces are cut.
 |
| shelf base cut - 2 legs |
Top is cut in proper dimension depending on the distance between the legs. Do not fix it above the legs now. Just keep it aside.
 |
| mounted the top |
 |

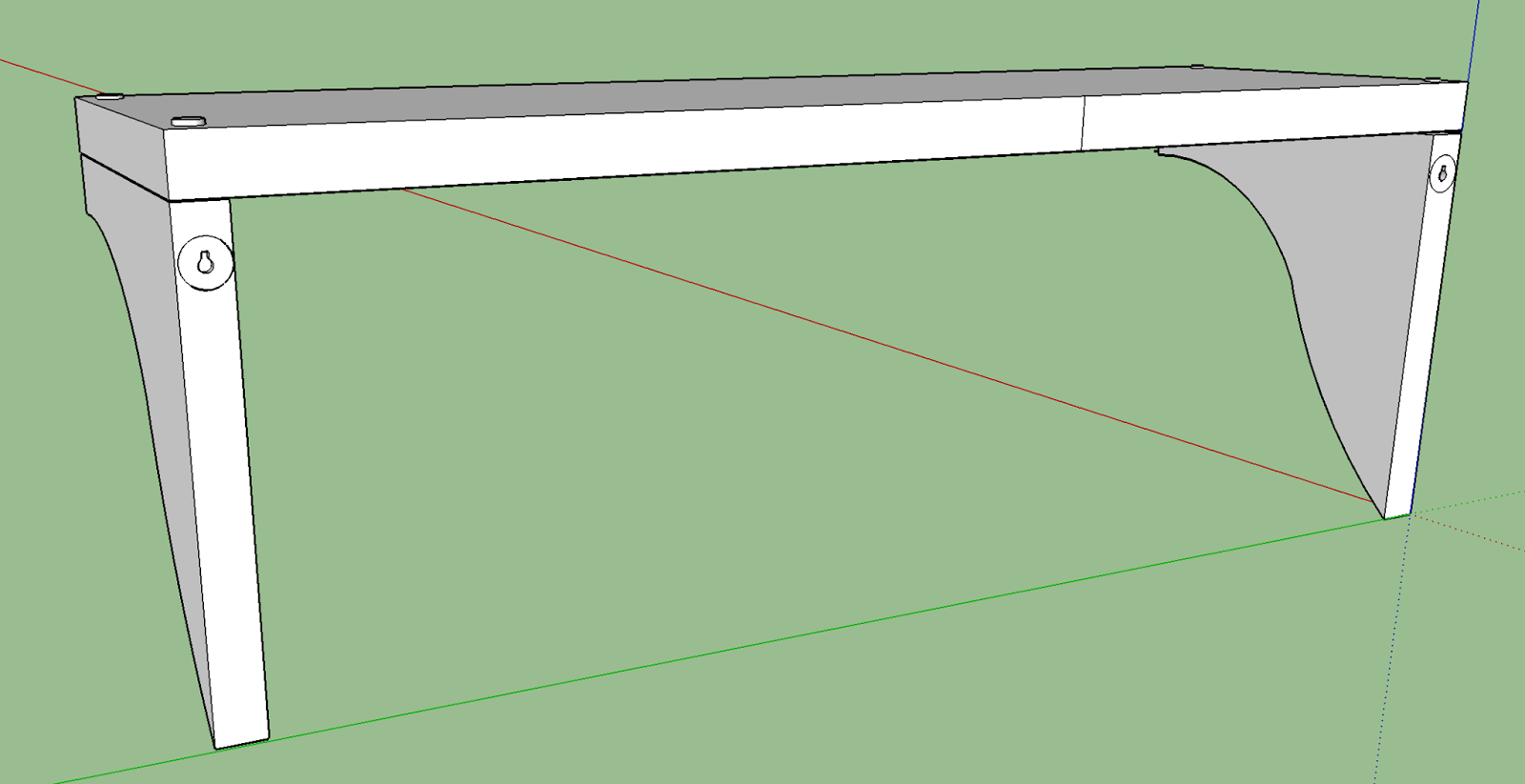

| sectional view of shelf |
 |
| sectional side view of shelf |
 |
| sectional front view of shelf |
 |
| sectional back view of shelf |
In the back of the legs, bracket to hang the same is fixed. 2 brackets in 2 legs. Fix 2 wall mounting screws on the wall and fit the legs. Once they are sit properly, fix the top.
Thanks.
